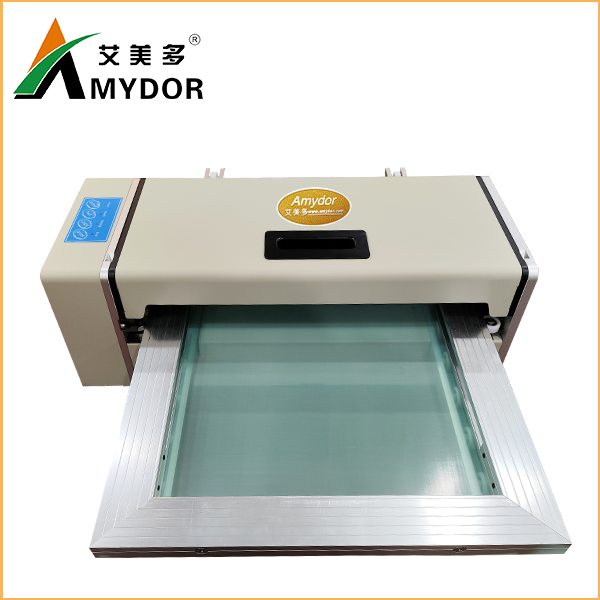

This AMD550 A4 digital screen maker has significant advantages over traditional plate making machines in terms of efficiency, cost, flexibility, image quality, ease of operation and environmental protection. Digital screen plate making machine can quickly generate printing plates, reducing platemaking time. It is suitable for small batch and diversified production needs, avoiding the high cost and long cycle of traditional plate making.
Digital screen making process:
- Prepare artwork in PC
- tretch screen film onto a frame
- Machine print artwork on screen film directly
- Screen created
- PS: The created screen is suitable for automatic printing machine.
Advantages of AMD550 A4Digital Screen Maker
- No need following steps:
- positive film, emulsions, expose, washout, dry.
- Quick and easy, about 50s to get an A4 screen.
- No screen making experience required
- Work directly from computer to screen
- Eliminates steps like exposure and drying
- Compact workspace
- Save on time and labor
- Perfect for short-run printing and test production
Technical Parameter of Digital Screen Maker
| Project | AMD550 A4 |
| Design Software | CorelDRAW, Adobe Illustrator, etc |
| Max Printing Width | 216 mm |
| Print resolution | 200 dpi |
| Point density | 11.8 dots/ mm |
| Fixed Frame outer diameter width | 370 mm |
| Max Image Printing Size | 216 mm, no limit of length theoretically |
| Screen frame thickness | 25- 30 mm |
| Printing speed | MAX 10 mm/ s |
| Communication Interface | USB 2.0 full speed |
| Operating system | Windows WIN 7/ 8/ 10/ 11 |
| Power supply | AC, 150 W, 110 V – 240 V (Support Customization) |
| Print Head Life | 150000 m (eg: it can print 500000 pcs of 30 cm image length |
| Packaging Dimension | 740 mm * 360 mm * 350 mm, 0.09 CBM, about 22.5 kg |
