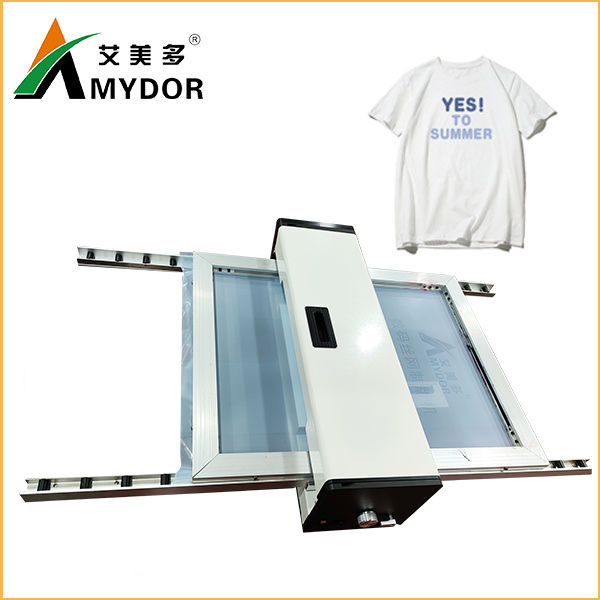

Clothes Screen Printing Plate Making Machine （No Need Film）

Compared with the traditional screen printing plate making machine, the clothes screen printing plate making machine provided by our company not only has less process to save time and labor, but also makes the plate making more accurate, making the printing more exquisite, and bringing a broader market to the screen printing industry.

Working Process And Video Of Screen Printing Plate Making Machine

Stretch the screen on the screen frame first, put the screen frame into the machine, and then print the screen version of the clothes directly from the PC. A working video of the clothing screen printing machine can be seen below.

Advantages of Clothes Screen Printing Plate Making Machine

• The design sample can be modified arbitrarily on the computer, and the operation is simple and flexible.
• The waiting time is short, and the plate making does not need to be rinsed.
• No need for film and no exposure.
• A variety of meshes are available, and customers can choose different meshes according to the desired accuracy.、
• It is more time-saving and labor-saving than traditional screen printing plate makingmachine.

Applications Of Clothing Screen Printing Machine

The stimulator has a wide range of applications and is an ideal device for printing in various industries.

1. Packaging and printing industry: such as cosmetic bottles, skin care product bottles, eyebrow pencils, lipstick tubes, food packaging bottles and cans, etc.
2. Handicraft printing: tiles, art prints, ceramics, etc.
3. Glass product printing industry: Cosmetic bottles, perfume bottles, wine bottles, water cups, etc.
4. Plastic product printing industry: such as the printing of company logos, images, and text on CDs. In addition, there are warning signs, detergent bottles, toiletries bottles, beverage bottles, etc.
5. Plastic products printing industry: battery case is commonly used.
6. Printing industry of hardware products: aluminum products, thermos cups, bottle caps and so on.
7. Textiles: dust-free canvas bags, clothes, hats, etc.

If you want to get more details about the clothes screen printing plate making machine or a quotation, please leave us a message, and we will have a professional sales manager contact you.

Technical Parameters

Project	AMD550A
Printing method	Thermal transfer
Print width	300 mm
Print resolution	300 dpi
Point density	11.8 dots/ mm
The minimum inner diameter of the screen frame – the maximum width	360- 560 mm
The minimum outer diameter of the screen frame – the maximum width	440- 640 mm
Screen frame thickness	25- 30 mm
Printing speed	MAX 10 mm/ s
Communication Interface	USB 2.0 full speed
Operating system	Windows WIN 7/ 8/ 10/ 11
Power supply	220 VAC~ 50 HZ
Energy consumption	150 W
Working environment	Temperature: 0~30 ℃ Humidity: 20~85% RH (no condensation)
Storage environment	Temperature: -25~70℃ Humidity: 0~90% RH (excluding mesh, no condensation)
Reliability	Print head life: 20 KM
Physical size	730 mm long x 200 mm wide x 200 mm high
Total product weight	About 22 Kg
