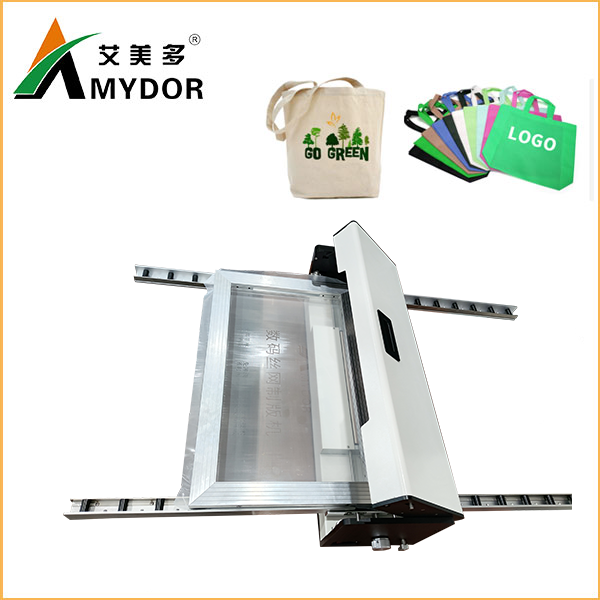

Canvas Non-Woven Bag Silk Screen Plate Printing Machine

This Non-woven bag screen plate printing machine does not need to make a plate, and the computer is easy to operate, and it can be printed immediately. Only simple image processing is required, and the printing software can be used directly after calculating the relevant values. In addition, the price of screen printing is more advantageous, and it is suitable for multi-variety printing.

Advantages Of Non-Woven Bag Screen Plate Printing Machine

Simple process: Compared with the traditional screen printing plate making machine, this non woven bag silk screen printing machine greatly simplifies the process of plate making. It does not need film, exposure, washing and other processing processes, and directly inputs the image to be printed on the computer to quickly realize plate making.

• Environmental protection and sanitation: There will be no waste water in the plate making process, no damage to the environment, green and pollution-free, and low harm to operators and the environment.
• Low cost: No complex typesetting design is required, which reduces printing costs and time.
• Good effect: The non woven bag silk screen printing machine provided by our company has high precision, and the effect of the printed dust-free bag is good.
• Wide range of applications: suitable for various types and personalized printing.

Operation Video Of Canvas Bags Screen Plate Printing Machine

The video shows the working video of the canvas bags screen plate printing machine. From the video, we can see that the machine is simple and fast to operate, and it is not restricted by the operating environment, which has more advantages.

We are a manufacturer specializing in digital printing machines for more than ten years and have our own factory. In addition, we have a number of patents, so you can buy with confidence. If you want to get the price about the non woven bag silk screen printing machine, please leave us a message.

Technical Parameters

Project	AMD550A
Printing method	Thermal transfer
Print width	300 mm
Print resolution	300 dpi
Point density	11.8 dots/ mm
The minimum inner diameter of the screen frame – the maximum width	360- 560 mm
The minimum outer diameter of the screen frame – the maximum width	440- 640 mm
Screen frame thickness	25- 30 mm
Printing speed	MAX 10 mm/ s
Communication Interface	USB 2.0 full speed
Operating system	Windows WIN 7/ 8/ 10/ 11
Power supply	220 VAC~ 50 HZ
Energy consumption	150 W
Working environment	Temperature: 0~30 ℃ Humidity: 20~85% RH (no condensation)
Storage environment	Temperature: -25~70℃ Humidity: 0~90% RH (excluding mesh, no condensation)
Reliability	Print head life: 20 KM
Physical size	730 mm long x 200 mm wide x 200 mm high
Total product weight	About 22 Kg
