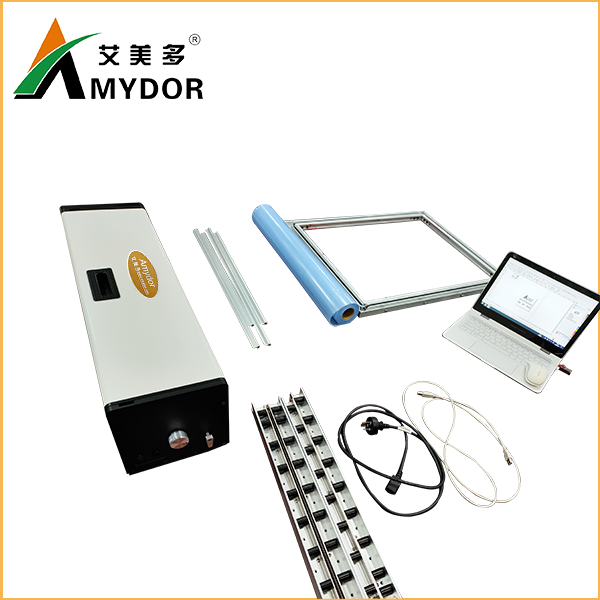

Amydor 550A Screen Plate Printing Machine Digital Screen Maker

The digital screen plate printing machine provided by our company adopts digital control technology to directly generate printing plates through computers. Compared with traditional screen printing, the cumbersome process of plate making is eliminated, making the printing process more efficient and flexible. In the plate making process, no film, exposure and other traditional plate making processes are required.

Features of  Screen Plate Printing Machine

• Digital control: Generate printing plates directly from digital files, reducing manual intervention.
• High precision: Able to achieve high-resolution printing effects, with better details.
• Fast plate change: Can quickly switch between different designs and patterns, suitable for small batch production.
• Environmentally friendly: No darkroom film and other steps are required to reduce the impact on the environment.
• Versatility: After the plate making is completed, it is suitable for printing a variety of materials, such as paper, plastic, metal, etc.

Advantages of Digital Screen Maker

• High efficiency: Reduces plate making time and improves production efficiency.
• Low cost: Suitable for small batch production, reducing plate making and material costs.
• Strong flexibility: Can quickly adjust production content according to market demand.
• Stable quality: Digital control ensures consistency and high quality of each print.
• Easy to operate: Friendly operation interface, reducing the requirements for operator skills.

Applications of Digital Screen Maker

• Advertising industry: used to make advertising materials such as posters and brochures.
• Clothing printing: Printing patterns on T-shirts, hats and other clothing.
• Packaging industry: used for printing various packaging materials, such as paper boxes, plastic bags, etc.
• Electronic products: Printing logos and patterns on the shells of electronic products.
• Art creation: Artists can use this device to create limited edition artworks.

Technical Parameters

Project	AMD550A
Printing method	Thermal transfer
Print width	300 mm
Print resolution	300 dpi
Point density	11.8 dots/ mm
The minimum inner diameter of the screen frame – the maximum width	360- 560 mm
The minimum outer diameter of the screen frame – the maximum width	440- 640 mm
Screen frame thickness	25- 30 mm
Printing speed	MAX 10 mm/ s
Communication Interface	USB 2.0 full speed
Operating system	Windows WIN 7/ 8/ 10/ 11
Power supply	220 VAC~ 50 HZ
Energy consumption	150 W
Working environment	Temperature: 0~30 ℃ Humidity: 20~85% RH (no condensation)
Storage environment	Temperature: -25~70℃ Humidity: 0~90% RH (excluding mesh, no condensation)
Reliability	Print head life: 20 KM
Physical size	730 mm long x 200 mm wide x 200 mm high
Total product weight	About 22 Kg
