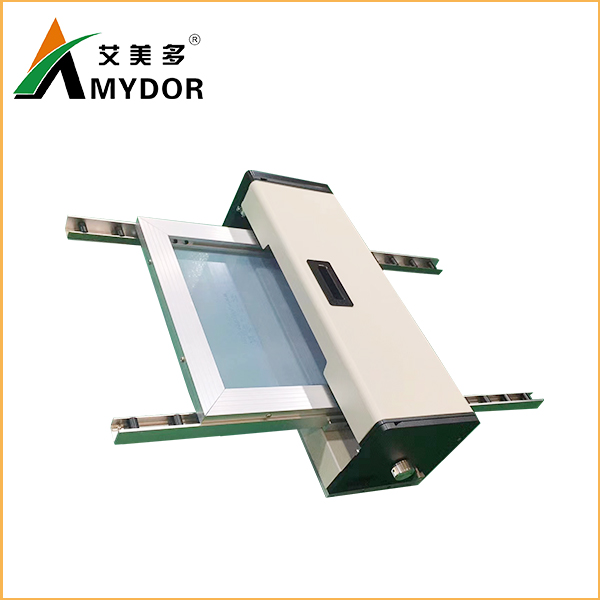

Digital Silk Screen Mesh Maker Screen Plate Printing Machine

This silk screen mesh maker is a new type of screen printing plate making machine, subverting the traditional processing process, and does not need film, exposure, or washing in the process of making screen printing screens. Bring screen printing directly into the digital age.

Advantages of Silk Screen Mesh Maker

• Make screen printing easy and fast.
• Bring screen printing into the digital age without chemicals, water, film or emulsion.
• No need for darkroom and washing station
• Print frame size and resolution can be selected and customized.
•  No need for washing, eliminating traditional steps such as exposure

Steps of Screen Plate Printing Machine

1. Stretch the omentum onto the screen frame, and then put the screen frame into the digital screen printing machine.
2. Install the printer driver provided by us on the computer.
3. Design the image that needs to be printed in a computer such as CDR or AI.
4. Carry out digital screen printing screen printing.
5. The printing can be completed in about a few minutes.

Applications of Digital Screen Maker

This screen plate printing machine has a wide range of applications and is suitable for printing all products with traditional processing techniques, and only needs to be printed according to the tradition.

• Apparel industry: clothes, T-shirts, shirts, hats, etc.
• Packaging and printing industry: canvas bags, handbags, balloons, pvc bags, etc.
• Advertising printing industry: graphics, business cards, advertising design, etc.
• Craft printing industry: art prints, mobile phone cases, etc.
• Glass printing industry: flat glass, etc.

If you want to know more details about the digital screen plate printer, you can leave a message to us.

Technical Parameters

Project	AMD550A
Printing method	Thermal transfer
Print width	300 mm
Print resolution	300 dpi
Point density	11.8 dots/ mm
The minimum inner diameter of the screen frame – the maximum width	360- 560 mm
The minimum outer diameter of the screen frame – the maximum width	440- 640 mm
Screen frame thickness	25- 30 mm
Printing speed	MAX 10 mm/ s
Communication Interface	USB 2.0 full speed
Operating system	Windows WIN 7/ 8/ 10/ 11
Power supply	220 VAC~ 50 HZ
Energy consumption	150 W
Working environment	Temperature: 0~30 ℃ Humidity: 20~85% RH (no condensation)
Storage environment	Temperature: -25~70℃ Humidity: 0~90% RH (excluding mesh, no condensation)
Reliability	Print head life: 20 KM
Physical size	730 mm long x 200 mm wide x 200 mm high
Total product weight	About 22 Kg
