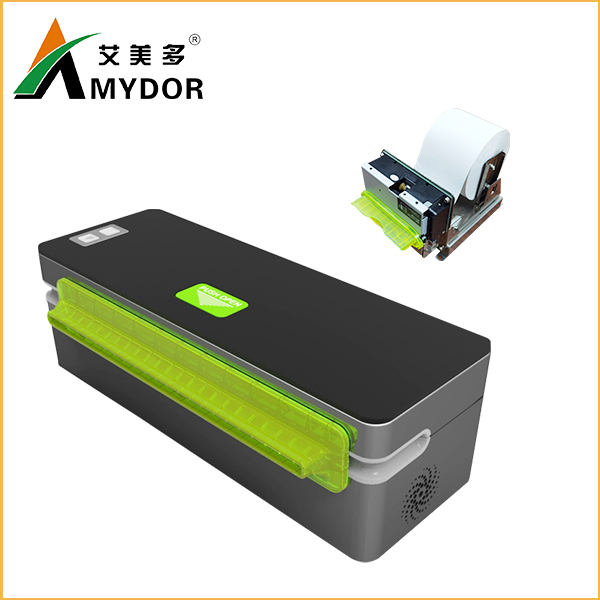

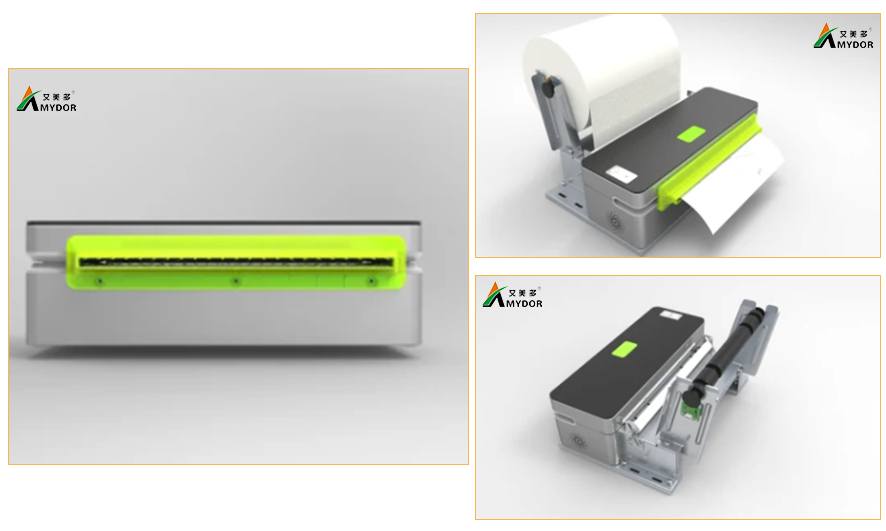

216 mm A4 Thermal Self-Service Kiosk Printer

This kiosk printer is a new type of thermal printer, which is widely used in various self-service terminal printing. It is a thermal self-service printer commonly used in various industries such as medical industry, office industry, school, bank, supermarket, hospital, and government departments. It has the advantages of fast printing speed, high printing accuracy, small appearance and easy embedding into end products.

Features of Kiosk Printer for Self-service

• Small size, easy to integrate into end equipment
• Support 210mm wide printing paper
• Support print quality real-time control
• Support automatic paper feeding mode
• Voltage range: 24V±10%
• Support USB/RS232 communication mode
• Support GDI printing mode
• Black calibration bit feature ensures consistent banknote length
• With paper near-full detection function, early warning of excess paper
• Support paper-out detection function, realizing pinching mode and bouncing mode

Application of Kiosk Printer

This kiosk printer is often used in various industries such as banking, communications, medical care, public safety, transportation, social security, energy, petroleum, stations, water and electricity, government affairs, and education.

If you want to get more details and quotations about this thermal self-service kiosk printer, please leave us a message to tell us your needs.

Technical Parameters

Project	300 DPI	203 DPI
Printing method	Line thermal printing
Print width	216 mm ( 2560 dots)	216 mm( 1728 dots)
Paper width	Max 216 mm
Paper thickness	60- 100 g/m²
Paper costs are light	Outer Diameter: Max 150 m; Inner diameter: Min 25. 4 mm
Print resolution	300 dpi	200 dpi
Dot density	11.8 dots/ mm	8 dots/ mm
Paper feeding method	180° automatic paper feeding
Printing speed	Max 120 mm/ s
Output mode	Combined ticket mode; Clipping mode
Support character set	FONT A: 12* 24( 1.02* 2.03 mm) dot matrix characters FONT B: 9*17( 0.76* 1.44 mm) dot matrix characters	FONT A: 12* 24( 1.5* 3 mm) dot matrix characters FONT B: 9* 17( 1.125* 2.125 mm) dot matrix characters
Bar code	One- dimensional code: EAN 8, EAN 13, CODE 93, CODE 128 QR code: QR, PDF 417
Communication Interface	RS 232/ USB
Receive buffer	2 MB
Instruction Set	ESC/ POS
Operating system	wrindows XP/ WlN7/ 8/ Linux/ Andorid
Sensor	Paper out detection. Paper near-end detection, machine head opening detection, machine head temperature detection, black mark detection, paper output detection, cutter jam detection, paper jam detection
Paper cutting mode	Automatic paper cutting, full cutting
Power supply	24 VDC 土 10%,6 A
Energy consumption	150 W
Working environment	Temperature: 0~ 50C;  Humidity: 20-85% RH( non- condensing)
Storage environment	Temperature: -25~ 70℃;  Humidity: 0-90% RH( excluding printing paper, no condensation)
Availability	Print head life: 100 KM cutter life: 300,000 times
