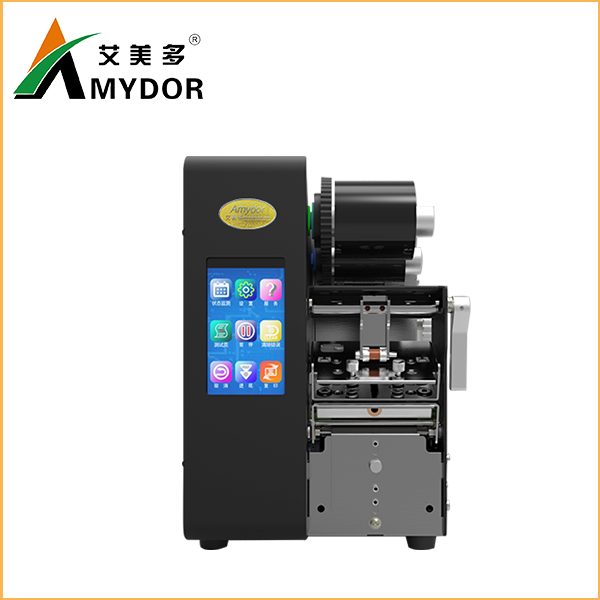

This washable label hot foil printer is a multi-functional printer with two resolutions available for customers with different needs: 300DPI and 600DPI. In addition to hot stamping on washable labels, this printer can also print business cards, single hang tags, etc.
This clothing care labels hot stamping machine has the characteristics of small size, fast printing speed and high printing quality, which effectively improves the work efficiency of end users. In addition, it also has an automatic ribbon saving function. When there is no printed content, the print head automatically lifts up, effectively saving ribbons. usage, greatly reducing consumable costs for users. Making it the perfect choice for single-fed printing equipment.
Features of Washable Labels Hot Foil Printer
- This washable label hot foil printer is small in size and does not take up space
- 4.3-inch capacitive touch display, beautiful and elegant
- 300/600DPI high-definition printing, perfect display of details
- This labels hot foil printer supports real-time control of print quality
- Seamless connection with Bartender/Nicelabel, easy to use
- The feeding height can be adjusted steplessly to support the dividing and rolling of media of various thicknesses.
- Industrial design, meeting 24-hour uninterrupted printing
- SDK can be provided to facilitate system integration applications
Technical Parameters
Project | AMD41F1-D01 | AMD41F1-D02 |
Printing method | Line thermal transfer | |
Print resolution | 300 DPI | 600 DPI |
Effective printing width | MAX 54 mm | MAX 57mm |
Media width | 25- 65 mm | |
Media thickness | 100- 400 g weight | |
Ribbon type | Wax base, mixed base, resin | |
Ribbon size | Width MAX 70 mm, inner diameter 1 inch, length MAX 300 m | |
printing speed | 2,3,4,5 inch/ s | 3,4,5,6 inch/ s |
Communication Interface | USB(Optional Bluetooth) | |
Instruction Set | TSPL/ ESC/ POS | |
Operating system | Windows XP/ 7/ 8/ 10/ 11, supports SDK call printing | |
Power supply | VAC 220- 50 Hz | |
Reliability | Three months for print head and one year for other parts |
